Nominal Instrumentation is a Python library with the following objectives:
  1. Accelerate the authoring of tests which rely on hardware instruments.
  2. Provide low-code integration with Nominal tools like Connect and Core.
  3. Define entry points for creating instrument interfaces and drivers that integrate with the library.
  4. Provide abstractions that allow code reuse across various instrument models.
It is a Python forward framework that should be accessible to engineers new to Python but also extensible and useable by engineers who are Python savvy.

​
Problem Space: Before and After

​
Before: DAQ to Nominal Core

Here’s what is required to read data from various DAQ devices and stream data to Nominal Core.
import time
from labjack import ljm
import nominal as nm

DATASET_RID = "<your dateset rid>"

# Initial Nominal Config
client = NominalClient.from_profile("default")
dataset = client.get_dataset(DATASET_RID)

# Set up labjack
aScanList = ljm.namesToAddresses(len(["AIN0", "AIN1"]), ["AIN0", "AIN1"])[0]
handle = ljm.openS("ANY", "ANY", "ANY")
info = ljm.getHandleInfo(handle)
deviceType = info[0]
if deviceType == ljm.constants.dtT4:
    aNames = ["STREAM_SETTLING_US", "STREAM_RESOLUTION_INDEX"]
    aValues = [0, 0]
else:
    ljm.eWriteName(handle, "STREAM_TRIGGER_INDEX", 0)
    ljm.eWriteName(handle, "STREAM_CLOCK_SOURCE", 0)
    aNames = ["AIN0_RANGE", "AIN1_RANGE", "STREAM_RESOLUTION_INDEX"]
    aValues = [10.0, 10.0, 0]
    if deviceType == ljm.constants.dtT7:
        aNames.extend(
            ["AIN0_NEGATIVE_CH", "STREAM_SETTLING_US", "AIN1_NEGATIVE_CH"]
        )
        aValues.extend([199, 0, 199])
numFrames = len(aNames)
ljm.eWriteNames(handle, numFrames, aNames, aValues)

# Start the labjack. Read 500 samples 10 times
ljm.eStreamStart(handle, 500, len(aScanList), aScanList, 5000)
with dataset.get_write_stream() as core_stream:
    for _ in range(10):
        # Read from Labjack
        readings = ljm.eStreamRead(handle)
        samples = readings[0]

        # Arrange data and send to Nominal Core
        timestamp = time.time()
        samples_per_channel = int(len(samples) / len(aScanListNames))
        dt = 1/5000
        t0 = timestamp - dt * len(samples_per_channel)
        for i, channel in enumerate(aScanListNames):
            core_stream.enqueue_batch(
                channel_name = channel,
                timestamps = [t0 + j * dt for j in range(samples_per_channel)],
                values = [samples[j * len(aScanListNames) : (i + 1) * len(aScanListNames)] for j in range(samples_per_channel)][i],
            )

ljm.eStreamStop(handle)

import nidaqmx
from nidaqmx.constants import AcquisitionType
import nominal as nm

DATASET_RID = "<your dateset rid>"

# Initial Nominal Config
client = NominalClient.from_profile("default")
dataset = client.get_dataset(DATASET_RID)

with nidaqmx.Task() as task:
    task.ai_channels.add_ai_voltage_chan("Dev1/ai0:1")
    task.timing.cfg_samp_clk_timing(5000.0, sample_mode=AcquisitionType.CONTINUOUS)
    task.start()

    with dataset.get_write_stream() as core_stream:
        for _ in range(10):
            # Read from NI DAQ
            data = task.read(number_of_samples_per_channel=500)

            # Arrange data and send to Nominal Core
            timestamp = time.time()
            t0 = timestamp - 1/5000 * len(data[0])
            for i, ch_data in enumerate(data):
                core_stream.enqueue(
                    channel_name = task.channel_names[i],
                    timestamps = [t0 + j * 1/5000 for j in range(len(ch_data))],
                    values = ch_data
                )
    task.stop()

​
After: InstroDAQ

Here’s the same workflow using the Nominal Instrumentation library’s InstroDAQ.
from instro.daq.drivers.labjack import LabJackTSeriesDriver
from instro.daq import InstroDAQ
from instro.daq.types import Direction
from instro.lib.publishers import NominalCorePublisher

DATASET_RID = "<your dataset rid>"

# Swap in NIDAQDriver/MCCDriver/Keysight34980A to target a different vendor.
daq = InstroDAQ(
    name="myDAQ",
    driver=LabJackTSeriesDriver(device_id="<your_device_id>"),
)
daq.add_publisher(NominalCorePublisher(dataset_rid=DATASET_RID))

daq.open()

daq.configure_analog_channel(
    direction=Direction.INPUT, physical_channel="AIN0", alias="ch_0", range_min=-10, range_max=10
)
daq.configure_analog_channel(
    direction=Direction.INPUT, physical_channel="AIN1", alias="ch_1", range_min=-10, range_max=10
)
daq.configure_ai_sample_rate(sample_rate=5000, samples_per_channel=500)

# Start the acquisition and launch a background daemon that fetches from the DAQ buffer
daq.start()

for _ in range(10):
    time.sleep(0.5)

daq.stop()
daq.close()

​
Key Concepts of Nominal Instrumentation

  • Code to an interface, not the specific instrument in use.
  • Automatic data publishing to Nominal Core and Nominal Connect out of the box by way of a customizable Publisher interface.
  • Configurable background daemons read and expose measurements to your script and your publishers.

​
Two ways to get data

You can get measurements into your script in two ways. Both options publish data whenever a measurement is produced. The difference is who triggers the reads and how often.
Background acquisitionOn-demand acquisition
HowCall start(). A background daemon fetches from the instrument at a fixed, configurable rate. Use method get_channel() to pull the latest N values into your script if/when you need them.Skip start(). Call the instrument’s methods (e.g. read_analog(), get_voltage()) only when you want a measurement. Each call reads from the device and publishes the result.
Best forSimpler top-level apps where data should always be available and publishing.Applications that only need measurements at specific times; lower system and bus usage. DMMs are a great example.
RecommendationNominal recommends the background daemon pattern for most workflows. Data is always available and publishing, and it often simplifies application code, especially for bufferred acquisitions from a DAQ where you’d need to manage servicing a buffer yourself.Depending on your application, you may never need to call get_channel(), but the background daemon will always publish measurements for later analysis in tools like Nominal Core.
Instrument-specific pages (e.g. InstroDAQ) describe the exact methods and timing options for each type.

​

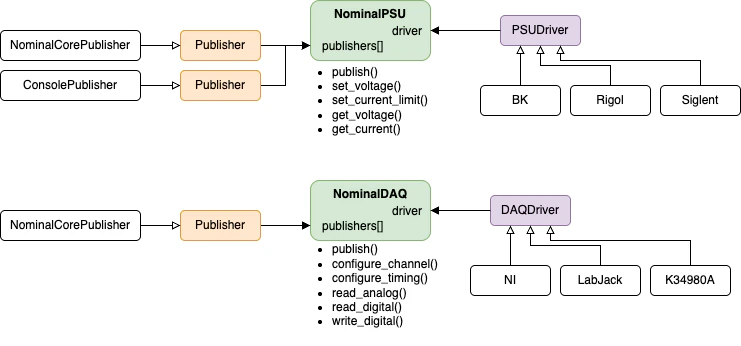

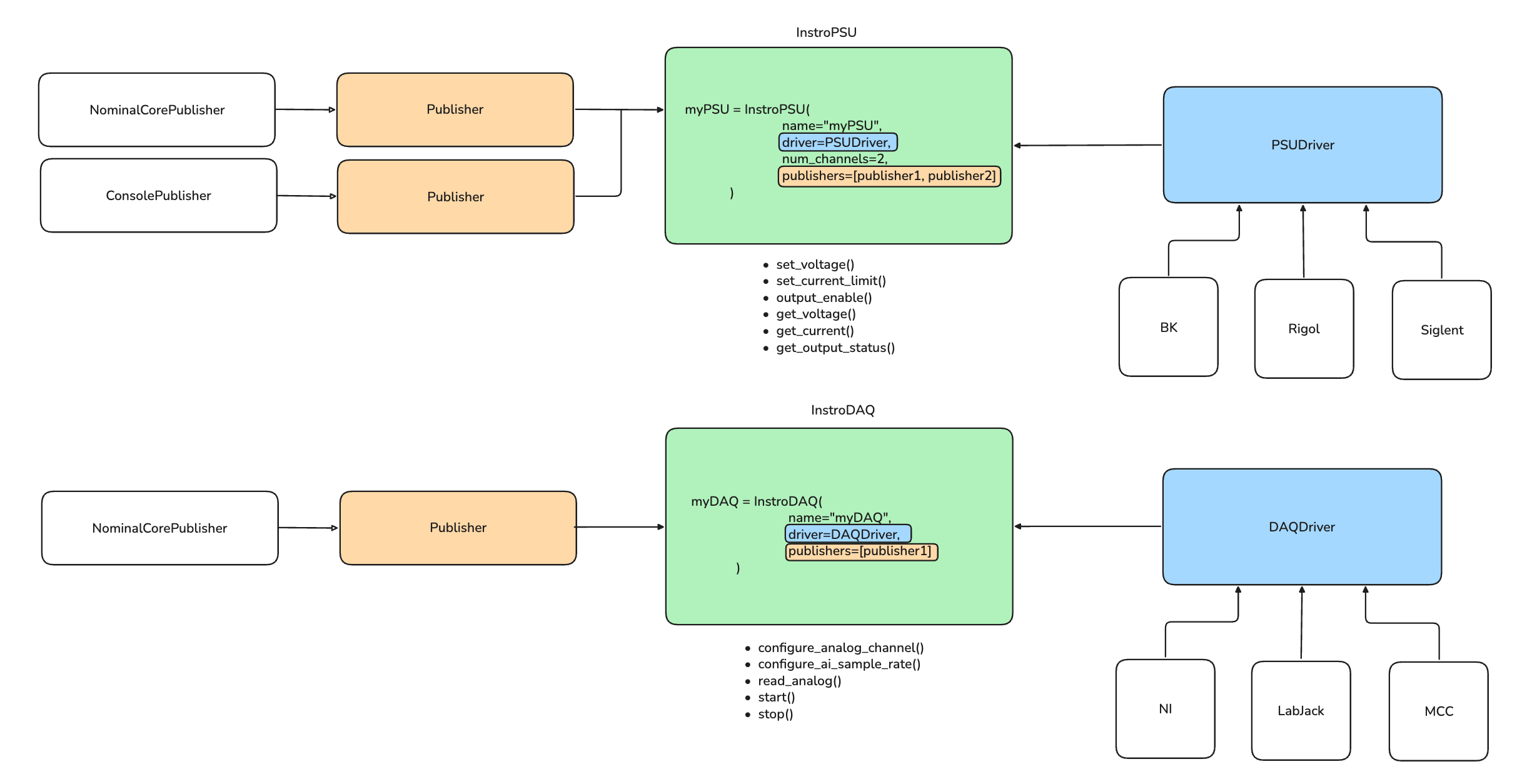

High Level Architecture

  1. Instrument Types / HALs: Distinct classes for each type of instrument (e.g., DAQ, PSU, ELoad, I2C), each providing an opinionated and unified usage model. This design exposes a tailored interface that reflects typical usage patterns, making common workflows consistent across different vendors and models.
  2. Drivers: Vendor- or model-specific drivers that handle low-level communication intricacies. HALs rely on these drivers to implement vendor- or model-specific details within the context of their higher level usage model.
  3. Publishers: Components responsible for recording or transmitting instrument data and commands. For example, streaming measurement data to a dataset.
PublishersData is published as a direct result of an instrument method being called.For example, when you call InstroPSU.get_voltage(), this not only queries the instrument for the voltage but also causes all attached Publishers to publish the measurement response automatically.This makes it easy to ensure measurements and state changes are consistently recorded or streamed without explicitly managing yourself.

​
Instrument Types

These are the current instrument types that have been developed by Nominal and available out of the box.
  • InstroPSU: programmable Power Supplies
  • InstroDAQ: data Acquisition devices
  • InstroELoad: electronic Loads
  • InstroDMM: digital Multimeters
  • I2CInterface: I2C master for communicating to peripherals on an I2C bus
  • ModbusDevice: Modbus register/coil device (TCP or RTU)

​
Drivers

These are the current vendor/model specific drivers that have been developed by Nominal and are available out of the box.
  • InstroPSU
    • B&K Precision
    • Siglent
    • Rigol
    • TDK Lambda
  • InstroDAQ
    • National Instruments (NI)
    • LabJack T-Series
    • Measurement Computing (MCC)
    • Keysight 34980
  • InstroELoad
    • B&K Precision 85xx Series
  • I2CInterface
    • Total Phase Aardvark
  • InstroDMM
    • Keithley 2400
    • Agilent/HP/Keysight 34401A

​
Publishers

These are the current Publishers that have been developed by Nominal and available out of the box.
  • NominalCorePublisher: sends data to a Nominal Core dataset
  • NominalConnectPublisher: sends data to Nominal Connect client
